Separate Placing Booms

Meales Concrete Pumping has an extensive scope of separate placing booms or also called satellite booms that allow you to control the placing of concrete quickly and easily everywhere.

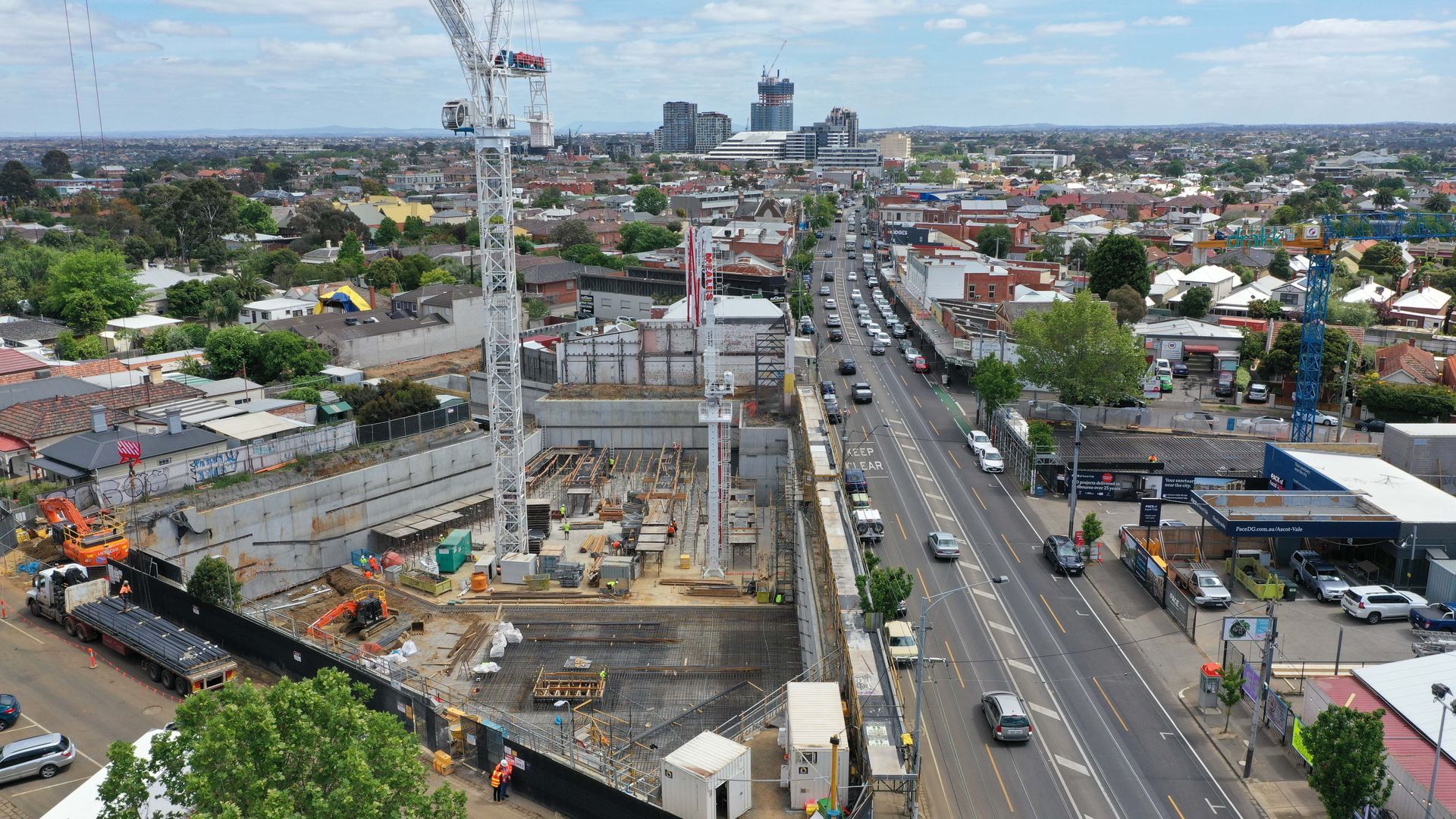

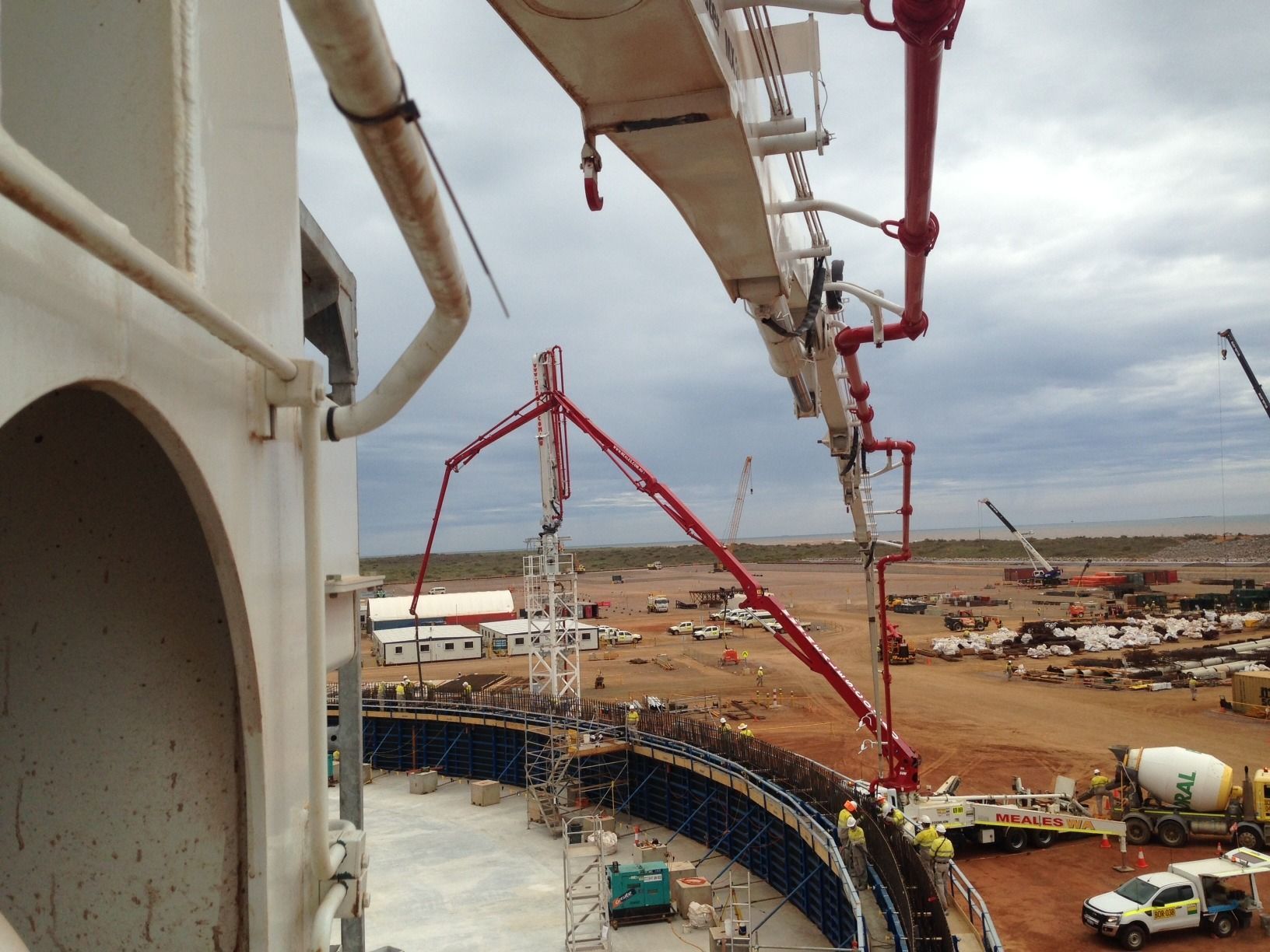

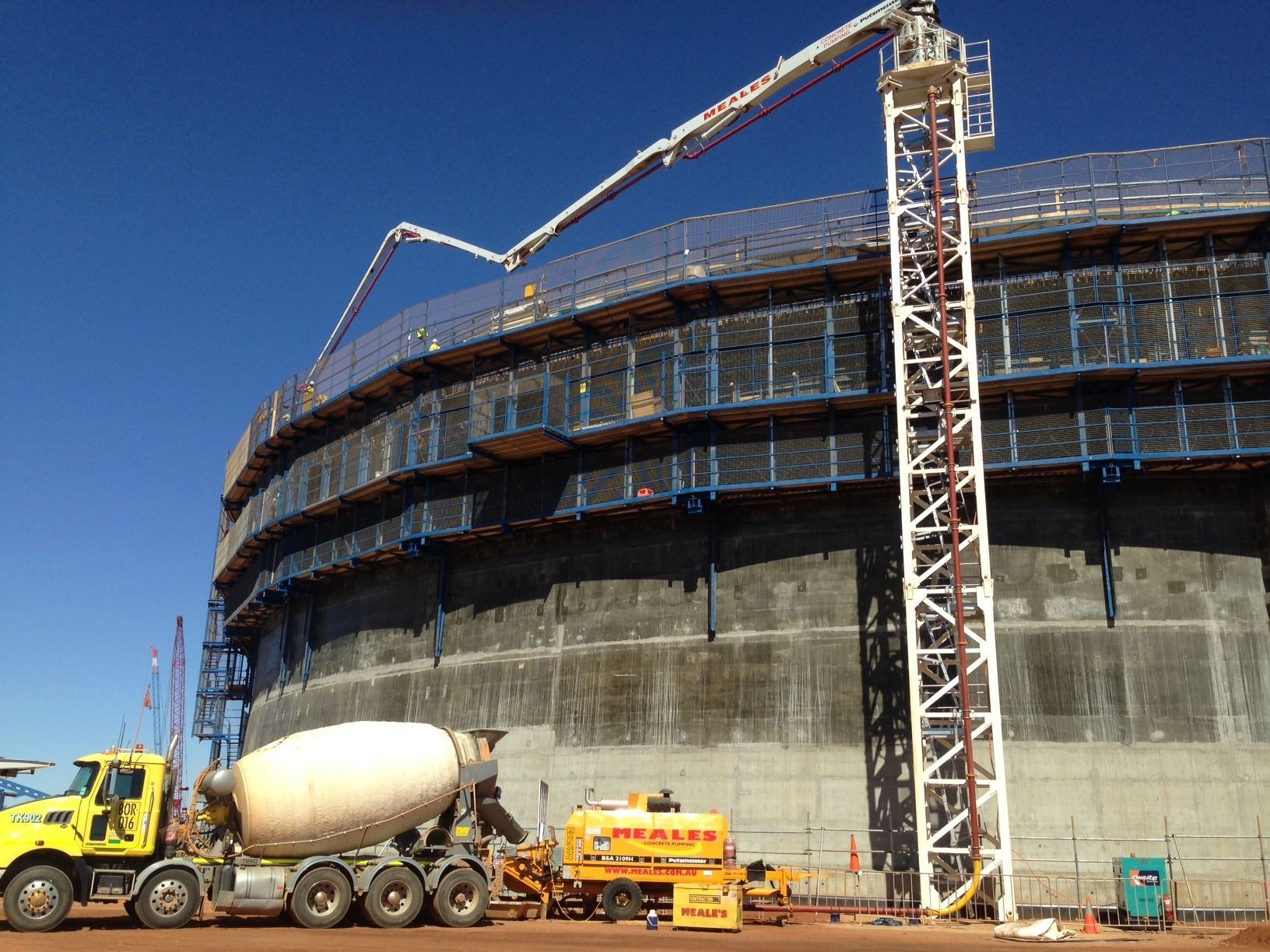

These booms are used in conjunction with stationary or other pumps in applications where structures are complex, exceptionally high or do not have sufficient space for mobile boom pumps to work. Placed on tubular columns and crane masts, they can climb from floor to floor, enabling quick and efficient concrete placement.

We offer a wide range of placing systems Australia-wide and with our available span of separate placing booms and associated pipeline equipment, we can service any scale of projects nationally.

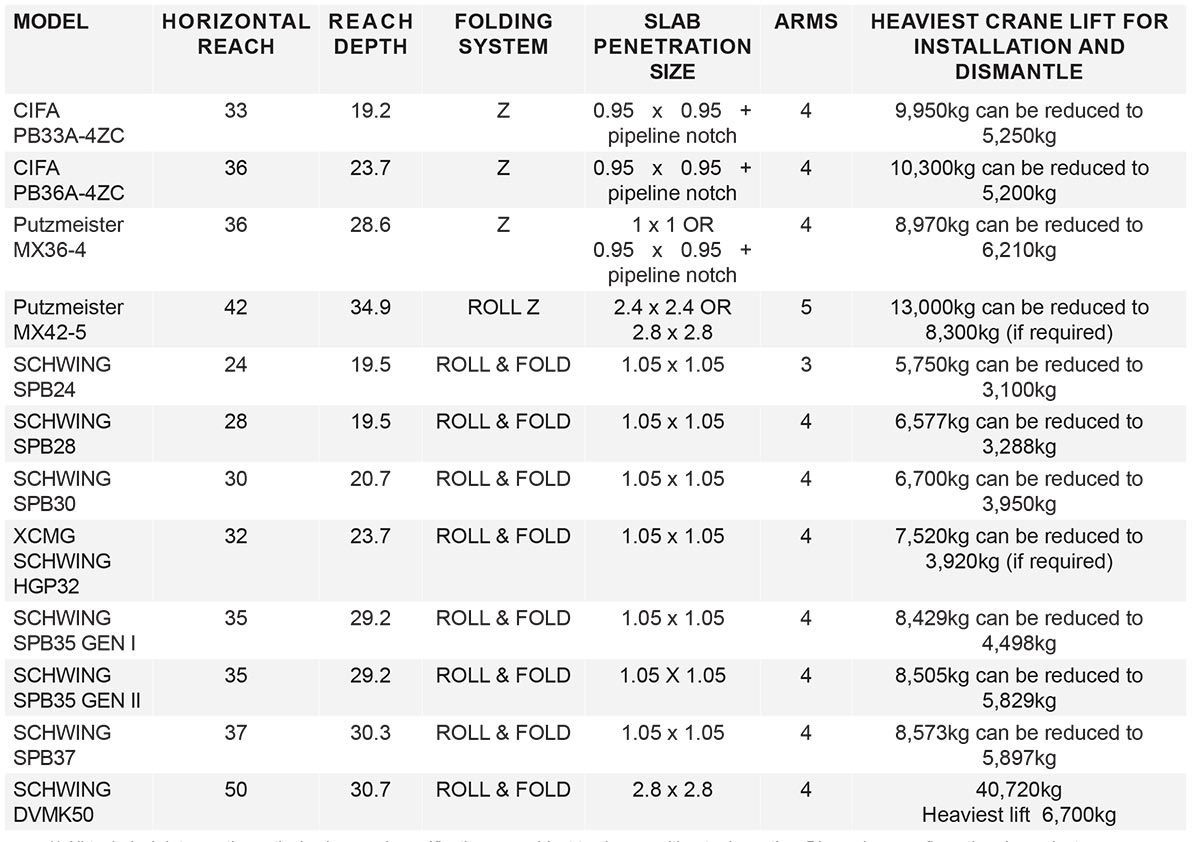

Separate Placing Boom Specifications

Have a look at our available separate placing boom specification below.

MODEL

HORIZONTAL REACH

REACH DEPTH

FOLDING SYSTEM

SLAB PENETRATION SIZE

ARMS

HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

CIFA PB33A-4ZC

33


Z
0.95 x 0.95
4

MODEL

HORIZONTAL REACH

REACH DEPTH

FOLDING SYSTEM

SLAB PENETRATION SIZE

ARMS

HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

CIFA PB36A-4ZC

36

Z
0.95 x 0.95
4

MODEL

HORIZONTAL REACH

REACH DEPTH

FOLDING SYSTEM

SLAB PENETRATION SIZE

ARMS

HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

Putzmeister MX36-4

36

Z
1 X 1 OR 0.95 x 0.95
4
8,900kg can be reduced to

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

Putzmeister MX42-5

42


2.4 x 2.4 OR 2.8 x 2.8
5
13,000kg can be reduced to 8,300kg (if required)

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING SPB28

28

ROLL & FOLD
1.05 x 1.05
4
7,300kg can be reduced to

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING SPB24

24

ROLL & FOLD

3

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING SPB30

30

ROLL & FOLD
1.05 x 1.05
4
6,000kg can be reduced to

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

XCMG SCHWING HGP32

32


1.05 x 1.05
4
7,520kg can be reduced to 3,920kg (if required)

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING SPB35

35

ROLL & FOLD
1.05 x 1.05
4
7,484kg can be reduced to

MODEL

HORIZONTAL REACH

REACH DEPTH

FOLDING SYSTEM

SLAB PENETRATION SIZE

ARMS

HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING SPB37

37

ROLL & FOLD
1.05 x 1.05
4
8,524kg can be reduced to

MODEL
HORIZONTAL REACH
REACH DEPTH
FOLDING SYSTEM
SLAB PENETRATION SIZE
ARMS
HEAVIEST CRANE LIFT FOR INSTALLATION & DISMANTLE

SCHWING DVMK50

50

ROLL & FOLD
2.8 x 2.8
4
16,700kg Heaviest lift 6,700kg

Separate Placing Boom Specifications

Have a look at our available separate placing boom specifications below.

Click on Separate Placing Booms brochure for further details or call us if you would like to know more.
