CONCRETE TRAILER PUMP SPECIFICATIONS

For Major Projects and Dry Hire of Mobile & High Rise Equipment and Solutions, please contact us us or send us an online enquiry.

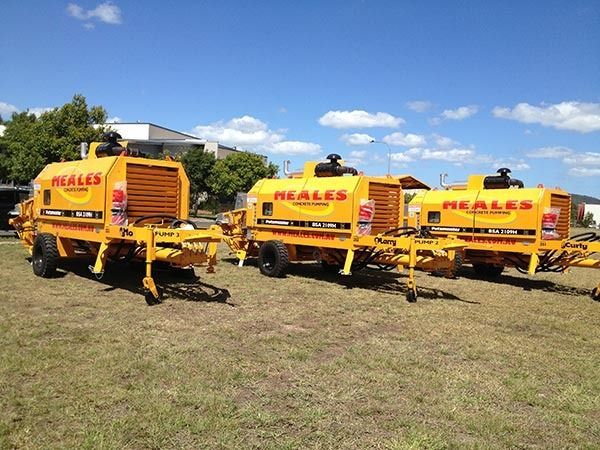

Concrete Trailer Pumps

Meales Concrete Pumping cover a range of trailer pumps that are powerful, reliable, durable and flexible. They provide exceptional convenience to meet the requirements of the most demanding jobs.

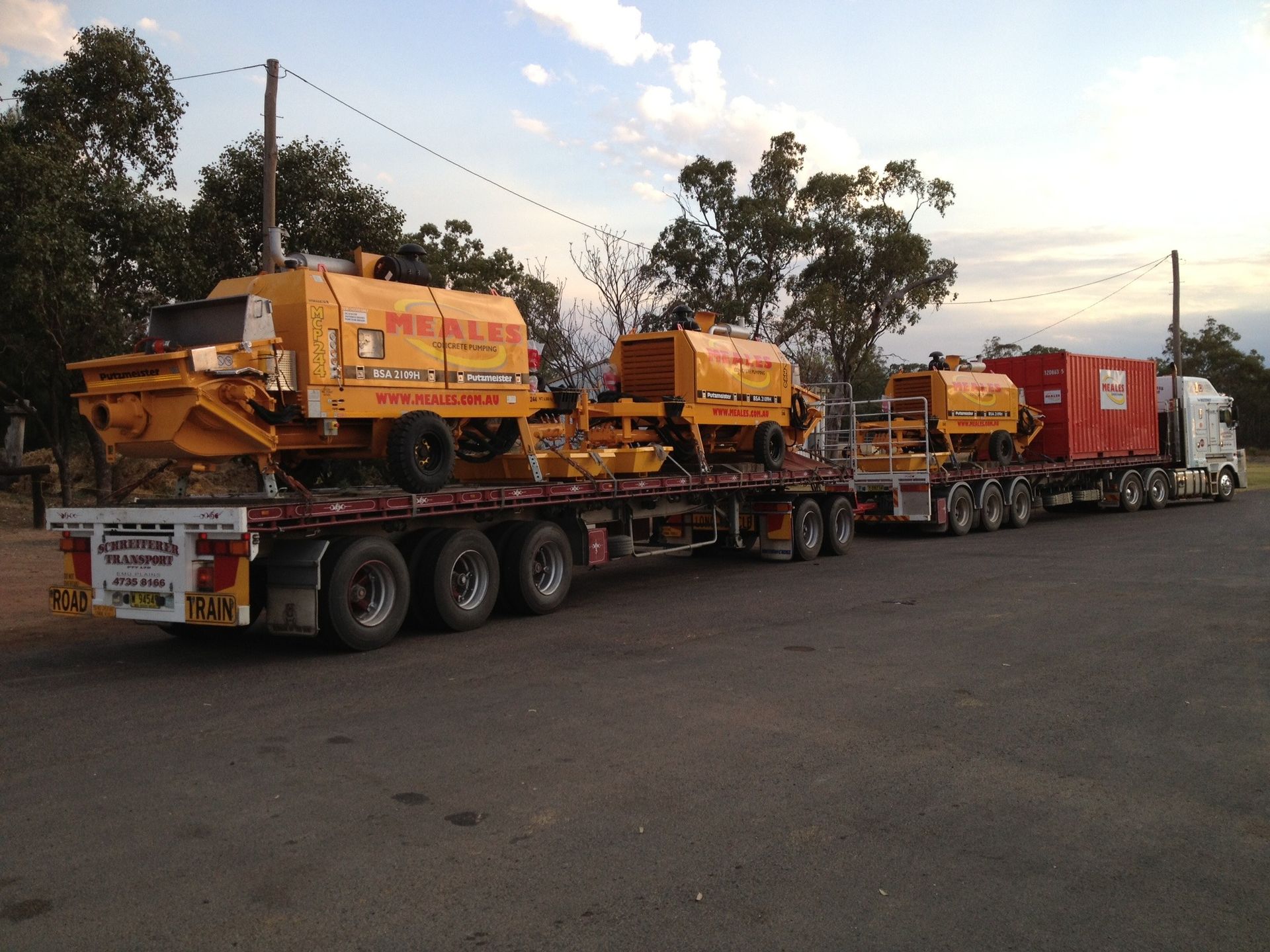

Our trailer pumps are small and manoeuvrable that can be used either attached to the tow vehicle or separated and positioned in locations that truck pumps could not access or would have trouble fitting.

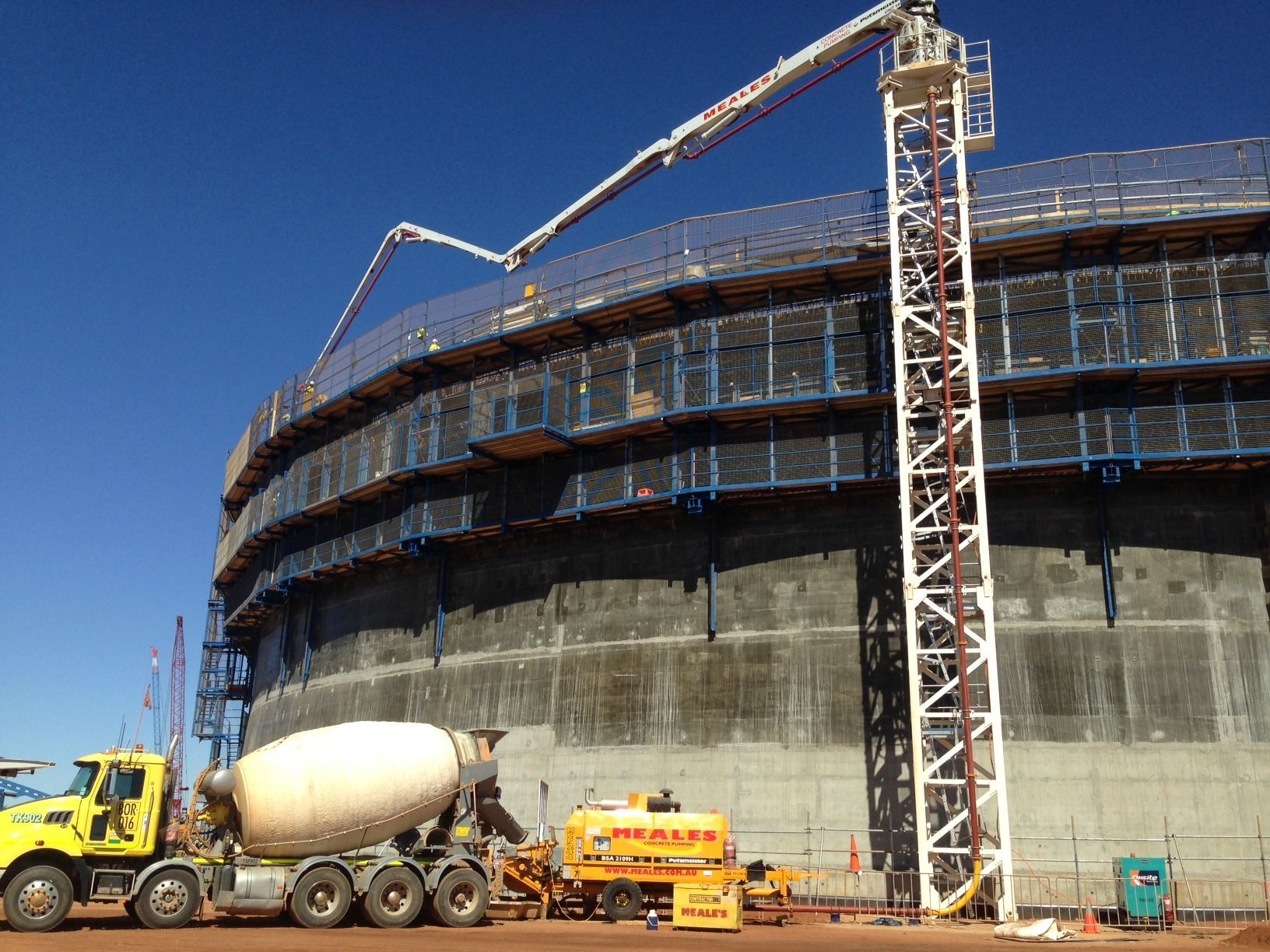

These concrete trailer pumps are excellent in a variety of applications in civil, mining and tunnelling as well as high rise pumping works, long distance concrete pumping, tunnel construction, sludge pumping and other specialty jobs.

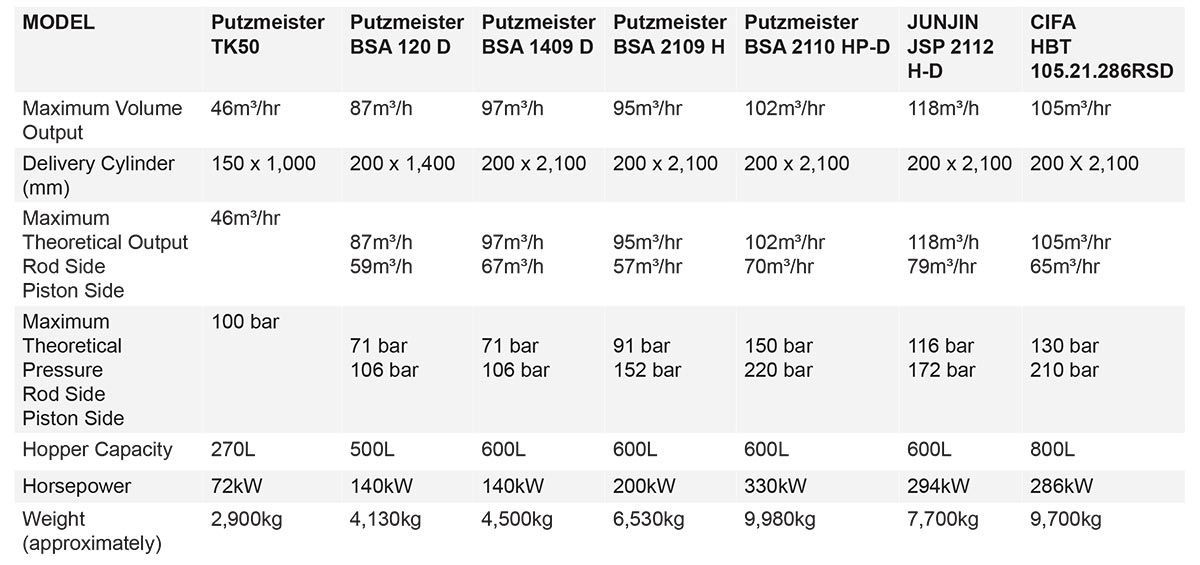

Concrete Trailer Pump Specifications

Have a look at our available trailer pump specifications below.

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity

Horsepower
Weight (approximately)

JUNJIN JSP 2112 H-D

118m3/h

200 x 2,100

118m3/h

79m3/hr

116 bar

172 bar

600L

294kW

7,700kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

Putzmeister BSA 120 D
87m3/h
200 x 1,400
87m3/h
59m3/h
71 bar
106 bar
500L

4,130kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

Putzmeister BSA 1409 D
97m3/h
200 x 2,100
97m3/h
67m3/h
71 bar
106 bar

104kW
4,500kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

Putzmeister BSA 2109 H
95m3/h
200 x 2,100
95m3/h
57m3/h
91 bar
152 bar
600L
200kW
6,530kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

Putzmeister BSA 2110 HP-D
102m3/h
200 x 2,100
102m3/h
70m3/h
150 bar
220 bar
600L
330kW
9,980kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

Putzmeister TK50

46m3/h

150 x 1,000

46m3/h


100 bar


270L

72kW

2,900kg

MODEL
Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output Rod Side Piston Side
Maximum Theoretical Pressure Rod Side Piston Side
Hopper Capacity
Horsepower
Weight (approximately)

ZOOMLION HBT 105.21.264S
105m3/h
200 x 2,100
105m3/h
66m3/h
125 bar
1205 bar
600L
2 x 132

Concrete Trailer Pump Specifications

Have a look at our available concrete trailer pump specifications below.
