CONCRETE LINE PUMP SPECIFICATIONS

For Major Projects and Dry Hire of Mobile & High Rise Equipment and Solutions, please contact us us or send us an online enquiry.

Concrete Line Pumps

Meales Concrete Pumping offers an extensive range of concrete line pumps for use in a variety of applications. These apply to small jobs or large high-pressure truck mounted line pumps for extremely long or high pushes. Our range of concrete line pumps gives both performance and mobility at competitive costs.

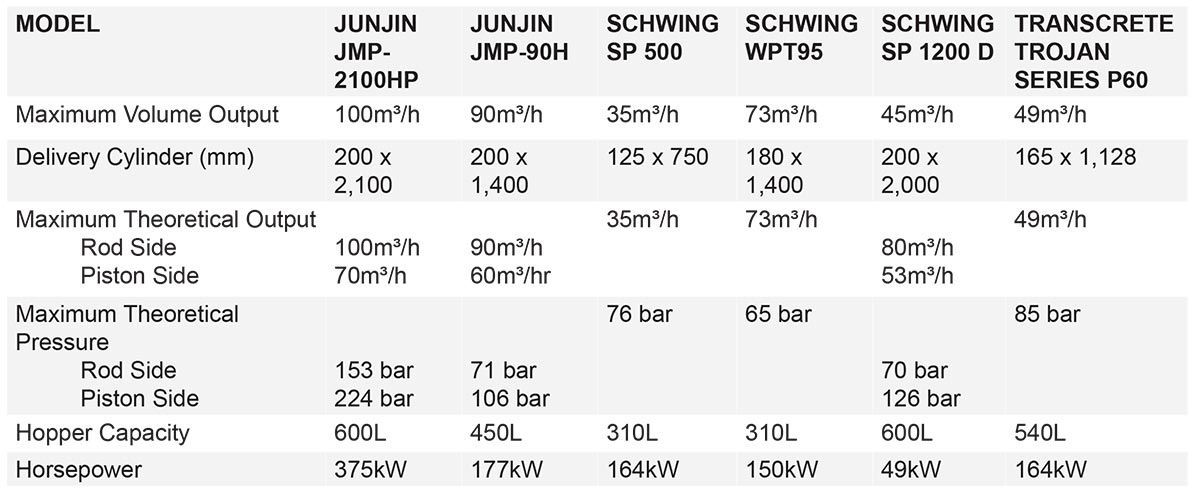

Concrete Line Pump Specifications

Have a look at our available concrete line pump specifications below.

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

JUNJIN JMP2100HP JUNJIN
100m3/h
200 x 2,100

100m3/h
70m3/h

153 bar
224 bar
600L
191kW

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

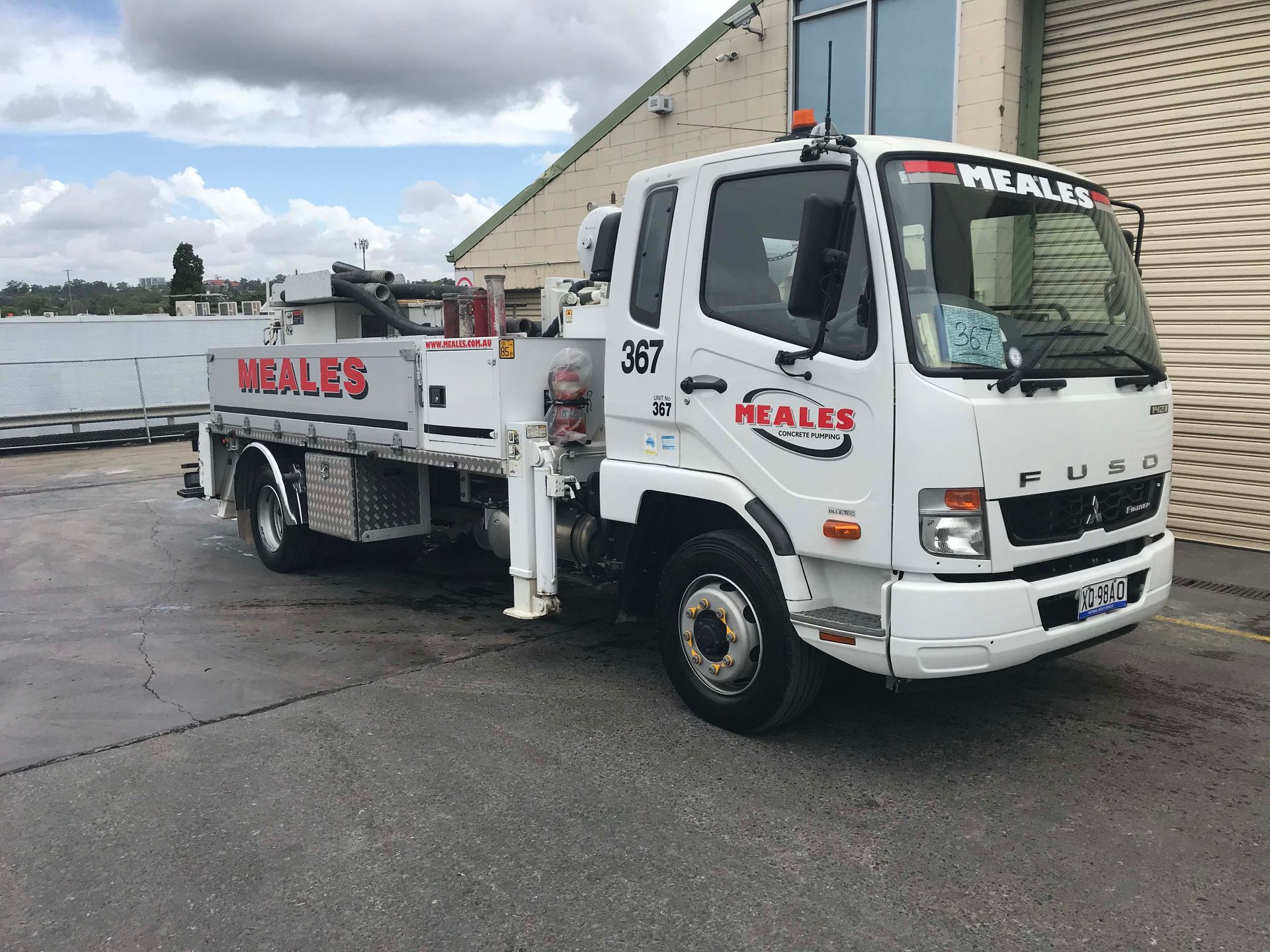

JUNJIN JMP-90H
90m3/h
200 x 1,400

90m3/h
60m3/h

71 bar
106 bar
600L
130kW

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

SCHWING SP 500
35m3/h
125 x 750
35m3/h


76 bar


310L
54kW

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

SCHWING SP 750

52m3/h
180 x 1,000
52m3/h


76 bar


310L
75kW

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

SCWHING SP 1200 D

45m3/h
180 x 2,100
45m3/h


70 bar


600L
49kW

MODEL

Maximum Volume Output
Delivery Cylinder (mm)
Maximum Theoretical Output
  Rod Side
  Piston Side
Maximum Theoretical Pressure
  Rod Side
  Piston Side
Hopper Capacity
Horsepower

TRANSCRETE TROJAN SERIES P60

49m3/h
165 x 1,128
49m3/h


85 bar


540L
65kW

Concrete Line Pump Specifications

Have a look at our available concrete line pump specifications below.
